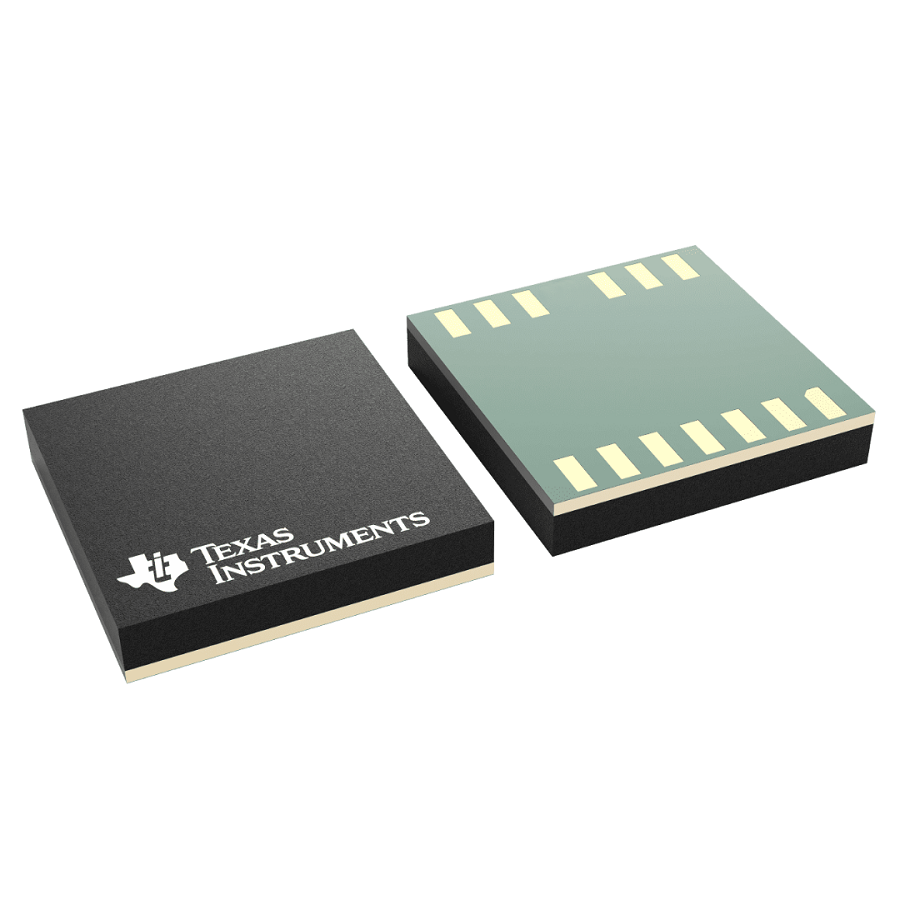

UCC21225ANPLT
Manufacturer:
Texas Instruments
Mfr.Part #:
UCC21225ANPLT
Datasheet:
Description:
Gate Drivers VLGA-13 SMD/SMT HighSide, LowSide
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 13 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.91 mm |
| RoHS | Compliant |
| Working Voltage | 792 V |
| Output Current | 6 A |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Fall Time | 7 ns |
| Rise Time | 6 ns |
| Number of Drivers | 2 |
| Configuration | HighSide, LowSide |
Stock: 44
Distributors
pcbx
pcbxUnit Price$3.24117
Ext.Price$3.24117
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.24117 | $3.24117 |
| 10 | $2.47044 | $24.70440 |
| 25 | $2.27783 | $56.94575 |
